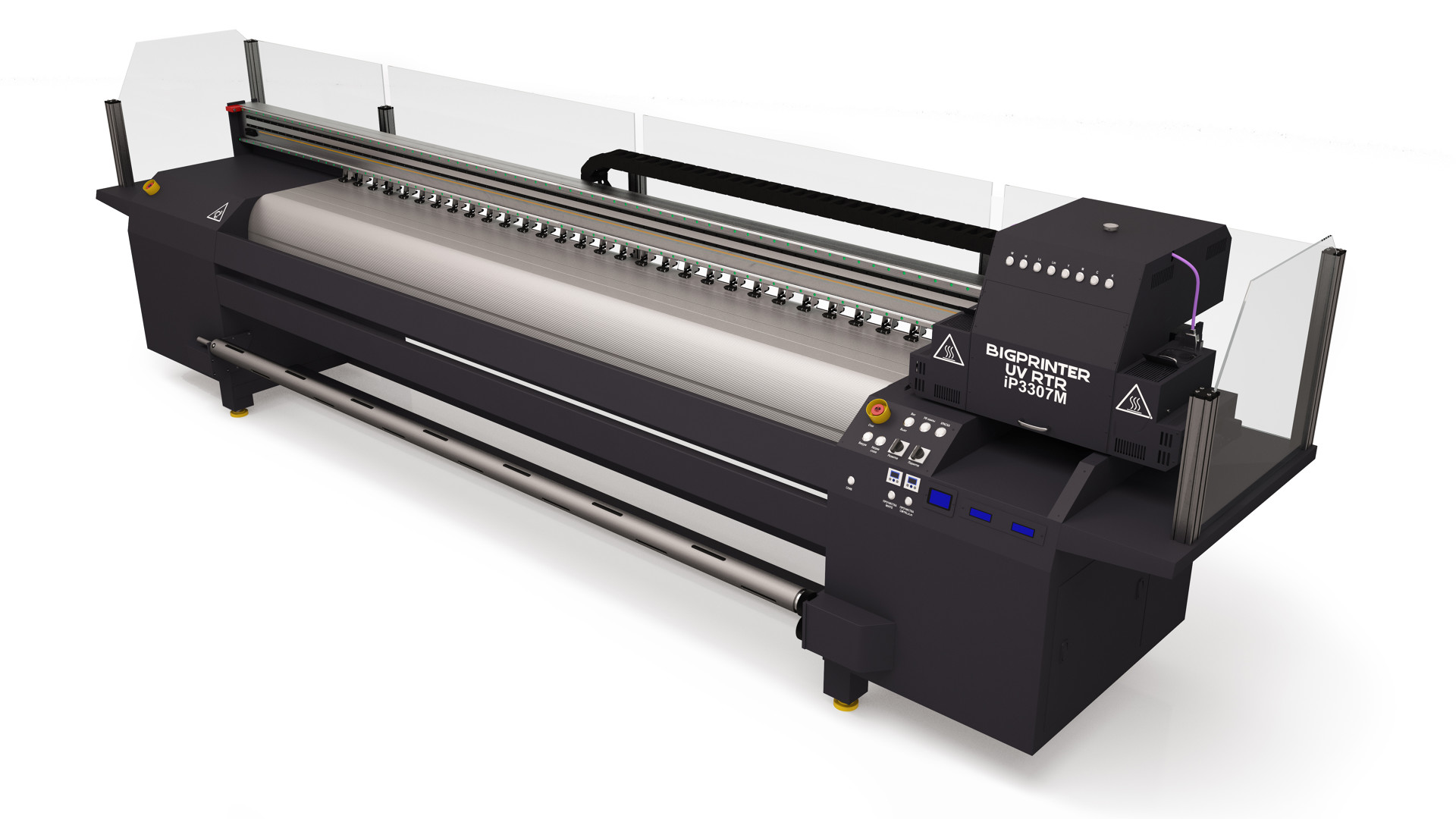

BIGPRINTER BIGJET UV RTR iP3307M

BIGPRINTER BIGJET UV RTR large-format roll-to-roll UV printer is the new development dedicated to the highest quality production of graphics for the outdoor and indoor applications.
BIGJET UV RTR is designed and assembled in Russia by the leader of the digital printing market in the country - "BIGPRINTER Digital Innovation LLC".

Request

Name *
Telephone *
E-mail *
Country *

SEE REVIEW

Заголовок окна

BIGPRINTER BIGJET UV RTR iP3307M

Get the best offer right now!

Technical specifications

COLOR MODEL

CMYK/ CMYK+W/ CMYKLcLm/ CMYKLcLm+W/ 2*CMYK

RESOLUTION

1016 Х 1440 dpi

PRINT WIDTH

3200 mm

PRINT SPEED

Billboard quality - up to 120 m²/h

High quality - up to 55 m²/h

WHITE COLOR

Direct white ink circulation through the printing head, free of nozzles clogging.

INK SUPPLY SYSTEM

Independent ink purge and vacuum system for each channel.

ROLL FEED

10 adjustable pinch rolls; two adjustment directions.

PRINTHEADS AREA

High precision printing heads base

NUMBER OF PRINTHEADS

4 - 8 units

PRINT DIRECTION

Unidirectional, bidirectional  printing

UV LAMPS

Powerful UV lamps: 200W/cm.

16 levels of adjustment.

SOFTWARE

Onyx RIP

WARRANTY PERIOD

1 year

INTERFACE

USB

SMART PRINT&CUT

Supports SMART PRINT & CUT Onyx RIP module with automatic image recognition

Advantages

Printer chassis:

- Ideally designed robust frame. Flawless media handling.

- Heads carriage linear motor driver for accurate dot placement.

- Precise mechanics. Reinforced beam.

- Solid design for great accuracy

- Shuttle safety sensors for the printing heads protection.

- Built-in anti-static system

Ink system

- KM 1024i printing heads (13 or 30 pl)

- Reliable negative pressure system.

- White ink circulation directly through the head. Nozzles clogging free.

- Ink overflow electronic protection.

- Automated head cleaning system

- Digital ink level sensors in the main tanks and secondary-tanks as well.

- Automated degassing system (air bubbles free ink system)

- Separated ink purge system for each colour channel.

- Convenient maintenance zone.

Precise and easy feeding of all types of media

- Feeding rolls diameter – 80mm.

- Unwinding rubber roll prevents media slipping.

- User friendly media feeding system.

- Perfect wind-up of the print results.

Professional UV Drying System

- Powerful 200 W/cm UV lamps, with a professional cooling system.

- Guaranteed ink curing without production speed compromising.

High precision encoder

± 1 micron

Separate protected electric cabinet

- Electric protection system made by ABB (Germany)

- Easy access for the maintenance and repair purposes

Why BIGPRINTER?

In the market since 2002

We successfully work in the market of wide-format equipment for over 16 years.
Digital printing is our passion!

Technical service

Our technical service department is always ready to provide you the best support.
We offer to our customers:
- Quickly training your staff on the product
- Boosting your productivity, so you can deliver quality prints on time, every time
- Web-based and phone-based support services complement our response capability.
It’s crucial first step in solving particular problems by providing access to repair information and diagnostic tools 24/7.

Guarantee

Bigprinter provides resellers with full stock of spare parts. Our printing experts educate resellers in repair, diagnostic and maintenance.
